MIL-DTL-62265 Filter Element And Relief Valve, Fluid Pressure, Hydraulic \(M-60 Tank Series\)This specification covers the performance and manufacture requirements for a hydraulic filter element and relief valve, disposable type, 3 and 5 micron filtration, herein referred to as the assembly.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20


MIL-DTL-62265C(AT)
180 Hz
9.9 Hz
3g
2g
1.5g
0.5 in. D.A.
1g
.5g
500
100
10
FREQUENCY, Hz

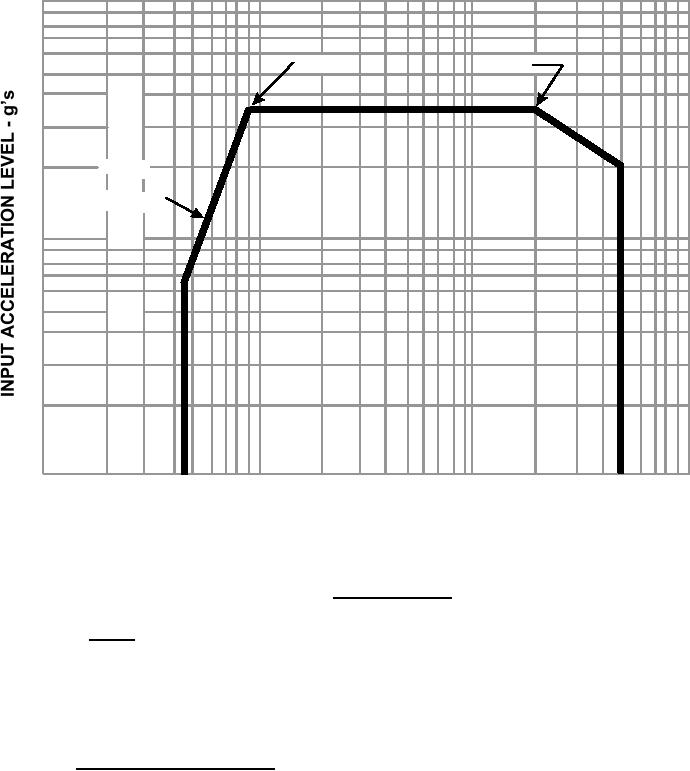

FIGURE 1. Vibration profile.
3.7.3 Shock. The assembly shall be capable of withstanding exposure to three half sine
wave shock pulses of 40 ± 4 g for a duration of 18 ± 3 milliseconds (ms) applied in both
directions along three mutually perpendicular axes (see 4.12.3).
4. VERIFICATION
4.1 Classification of inspections. The inspection requirements specified herein are
classified as follows:
a. First article inspection (see 4.2).
b. Conformance inspections (see 4.3).
8
