MIL-DTL-24630-1 Valves, Check, In-Line, Non-Reversible Installation For Hydraulic Fluid And Lubricating Oil Fluid

Pages 1 - 2 - 3 - 4 - 5 - 6


NOTES:
For dash no. 04 edgebreak shall be 0.005­0.015.
1.
2.
Tolerance ±0.003.
Tolerance +1/64, -0.
3.

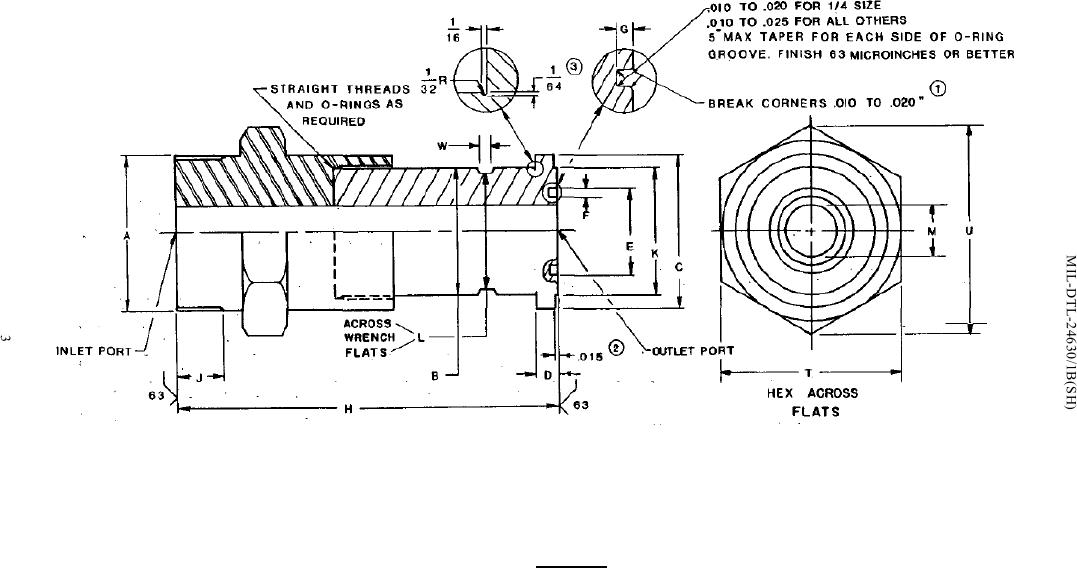

FIGURE 2. Valve body.
