INCH-POUND
MIL-DTL-24630/1B(SH)
17 June 2014
SUPERSEDING
MIL-V-24630/1A(SH)
8 August 1986
DETAIL SPECIFICATION SHEET
VALVES, CHECK, IN-LINE, NON-REVERSIBLE INSTALLATION FOR HYDRAULIC FLUID AND
LUBRICATING OIL FLUID
This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is
available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-24630(SH).

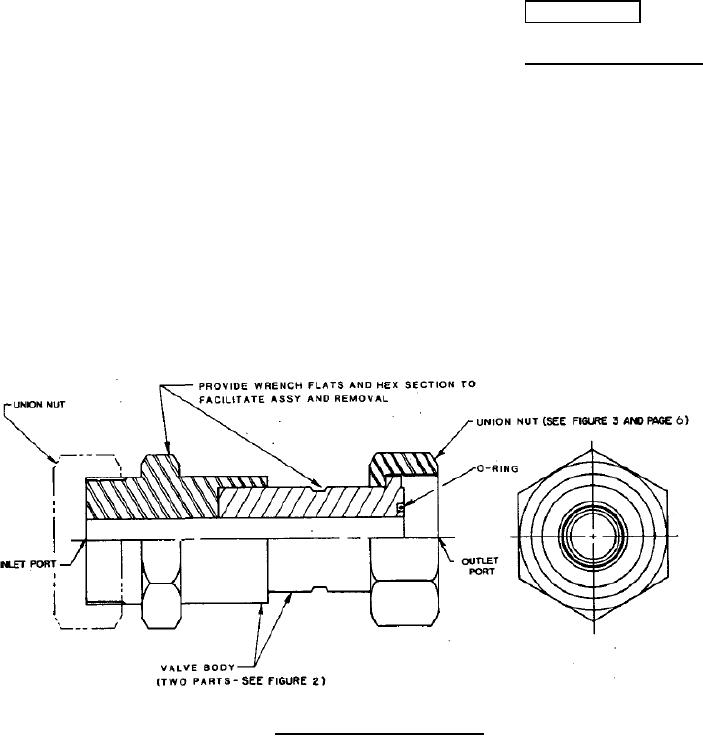

FIGURE 1. Non-reversible in-line check valve.
AMSC N/A
FSC 4820
