MIL-DTL-81940/4B
0.950 MIN. DIA. PUSHBUTTON
OR KNURLED KNOB
SEE KNOB OR
PUSHBUTTON BELOW
HEX
FITTING END
SEE TABLE I.
2.60 MAX.
DIA.
1.30
MAX.
0.50
MIN.
2.00
MAX.
SPOUT POSITION OPTIONAL PROVIDING 0.50 MIN. IS HELD
AND IT IS PERPENDICULAR TO MAIN AXIS OF VALVE.
CAP - AN 929A2W.
SPOUT - SEE TABLE I AND NOTE 5.
PUSH
TO
OR
O
OPEN
PEN
TURN KNOB
PUSHBUTTON
NOTES:
1.
Dimensions are in inches.
2.
Tolerances: Decimals ±0.010, angles ±1 degree.
3.
Surface roughness shall not exceed 125 microinches in accordance with ASME B46.1. All burrs shall be
removed and sharp edges broken 0.005 inch minimum.
4.
Material shall be in accordance with MIL-V-81940.
The spout shall be in accordance with table 1, except the bore may be up to 0.103 inch in diameter.
5.

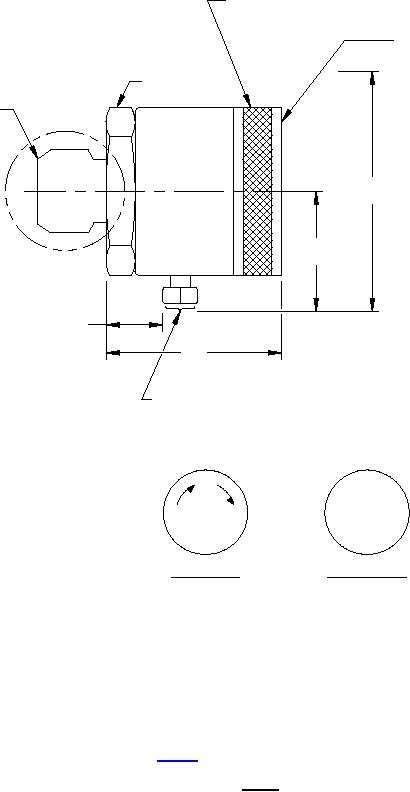

FIGURE 1. Valve.
